BRAVIA Theatre Bar 9 Flagship Single Soundbar 360 Spatial Sound Mapping Dolby Atmos HT-A9000

Amplifier

• Amplifier Channels: 13 ch
• Amplifier Type: Digital Amplifier, S-Master HX

Interface

• Bluetooth® Version: Bluetooth® 5.2
• Input and Output Terminals: S-Center Out
• IEEE 802.11 Version: a / b / g / n / ac
• HDCP 2.2: Yes
• Wi-Fi®: Yes

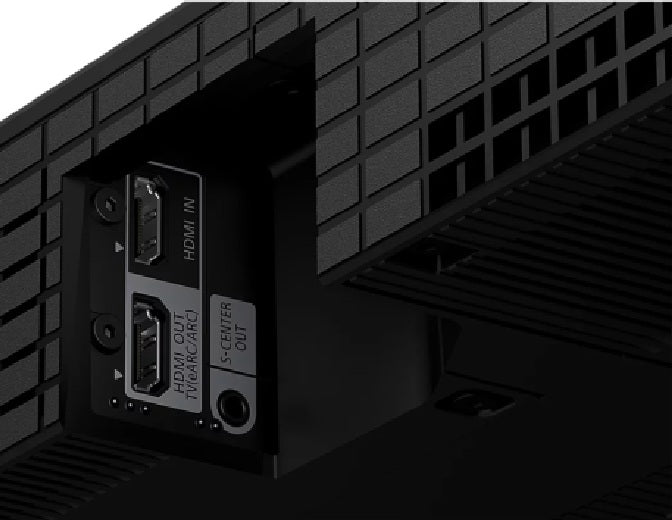

HDMI

• 4K/60p/YUV4:4:4: Yes
• Dolby Vision™ Compatible: Yes
• HDMI CEC: Yes
• ALLM (Auto Low Latency Mode): Yes
• HLG (Hybrid Log-Gamma): Yes
• VRR (Variable Refresh Rate): Yes
• BRAVIA Sync: Yes
• HDR: Yes
• HDCP 2.2: Yes
• Number of Input/Output: 1 / 1 (eARC / ARC)
• eARC: Yes

Audio Formats

• Bluetooth® Communication (Receiver): AAC, SBC, LDAC
• 360 Reality Audio: Yes
• HDMI Input: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Dual Mono, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS-ES, DTS 96/24, DTS:X, IMAX Enhanced, LPCM (2ch / 5.1ch / 7.1ch), 360 Reality Audio
• High Resolution Audio: Yes
• HDMI eARC: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, Dolby Dual Mono, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS-ES, DTS 96/24, DTS:X, IMAX Enhanced, LPCM (192kHz / 24-bit)

Sound Function

• Sound Enhancement Technology: DSEE Ultimate
• Sound Mode: Sound Field
• Sound Adjustment: Yes
• Virtual Surround Technology: 360 Spatial Sound Mapping
• Sound Effect: Night Mode, Voice Mode
• Calibration: Yes

Speaker Layout

• Speaker Structure: 7.0.2 ch (13 Speaker Units)

Network Function

• Network Function: Spotify Connect, AirPlay

Wireless Features

• Dual Subwoofer: Yes
• Wireless Surround (with Optional Wireless Speakers): Yes

Application

• Sony | BRAVIA Connect: Yes

Function with BRAVIA

• Function with BRAVIA: Acoustic Center Sync, Voice Zoom 3™, Quick Setting Menu

Details

• Power Consumption (Approx.): 62W
• Wall-Mountable: Yes

Eco and Energy Saving

• Wireless Network(s) On/Off Switch: Turn Bluetooth® and Wireless LAN on/off by pressing INPUT → Volume - → Volume + → INPUT on the supplied remote control.
• Power Consumption (Network Standby Mode – Terminals): 0.5 W (HDMI CEC) / 2.3 W (Wi-Fi / Bluetooth® connection / all terminals and networks connected)
• Power Consumption (Standby Mode / Low Power Mode): 0.5 W
• Off Mode / Standby Mode / Low Power Mode Activated: After 20 minutes
• Networked Standby Mode Activated – Terminals: After 20 minutes (HDMI CEC / Wi-Fi / Bluetooth® connection)
• Power Consumption (Off Mode): Not available
